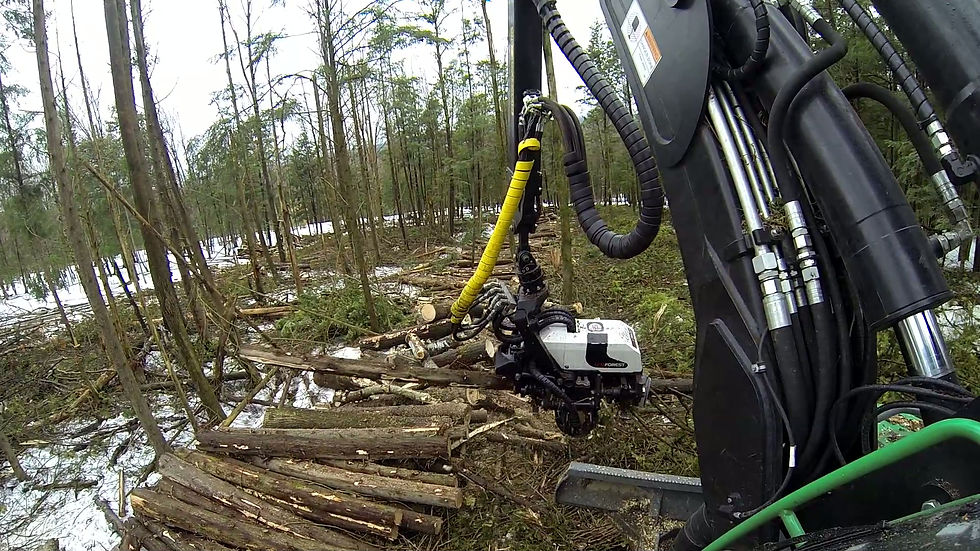

AFM 55 is a solution for clear felling and later thinning operations, made with middle sized forest machines. AFM 55 has big capacity and perfect holding geometry for the big stems. High flow hydraulic valve together with proportional pressure adjustment exploits perfectly the base machine power. Three roller feeding together with four delimbing knives ensures high quality production.
The AFM 55 can be equipped with multi tree handling device which allows easy collecting of energy wood. Feeding geometry ensures processing of several stems at the same time. AFM 55 fits efficiently on 12-18 tons forest machines.
Uses:
Later thinning operations
Clearcutting operations
Suitable platforms:
Medium sized wheeled harvesters

Weight1260 kg / 2778 lbs
Optimum tree diameter20-45 cm / 8-17"
Saw bar75-82 cm / 29-32"
Wheeled harvester weight12-18 t
Opening of front knives, max.670 mm / 26,4"
Opening of rollers, max.720 mm / 28,3"
Opening of back knives, max.790 mm / 31"
Width, max.1330 mm / 52,4"
Length, max.1380 mm / 54,3"
Felling diameter, max.750 mm / 29,5"
Delimbing knives6 pcs
Feeding unit4 motors - 3 rollers
Feeding speed0-5,5 m/s / 0-18 ft/s
Feeding power26 kN / 5,8 lbf
Needed engine power, min.80 kW / 107 hp
Needed hydraulic flow, min.250 l/min / 66 Gl/min
