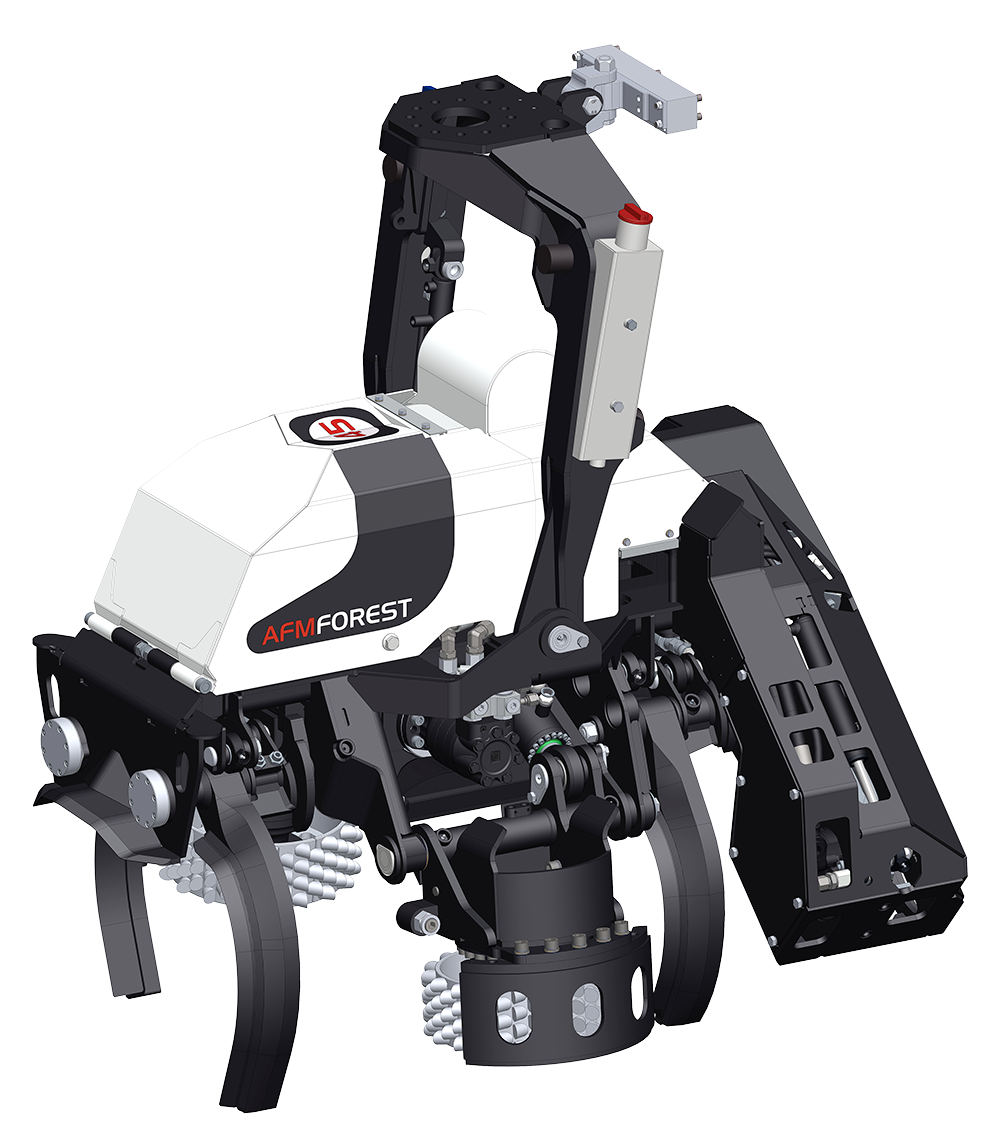

AFM 45 is effective harvesting head for thinning and final felling done with small and medium-sized forest machines. An exact delimbing is made with four knives and a non-sliding four motor feeding. Tree handling capacity is optimized for small and middle sized stems.
AFM 45 is equipped with the toughest frame in its class, powerful hydraulics with proportional pressure control and the automatic chain tensioning to ensure the efficient felling and cutting in all conditions. Accurate measuring is ensured by a hydraulic length measuring device and front knife diameter measuring. AFM 45 is optionally fitted with multi tree equipment for integrated logging.
Uses:
Thinning operations
Clearcut operations
Suitable platforms:
Medium sized wheeled harvesters
Medium sized tracked harvesters
Excavators under 14 tons

Weight965 kg / 2127 lbs
Optimum tree diameter5-35 cm / 2-14"
Saw bar67-75 cm / 26-29"
Excavator or tracked harvester weight12-14 t
Wheeled harvester weight8-18 t
Opening of front knives, max.495 mm / 19,5"
Opening of rollers, max.550 mm / 21,7"
Opening of back knives, max.610 mm / 24"
Width, max.1360 mm / 53,5"
Length, max.1410 mm / 56"
Felling diameter, max.650 mm / 26"
Delimbing knives6 pcs
Feeding unit4 motors - 3 rollers
Feeding speed0-5,5 m/s / 0-18 ft/s
Feeding power18-22 kN / 4-5 lbf
Needed engine power, min.60 kW / 80 hp
Needed hydraulic flow, min.200 l/min / 53 Gl/min
